CATV Drop Splitters
¡¡
 |
 |
 |
| N5172 Tow Way Splitter |

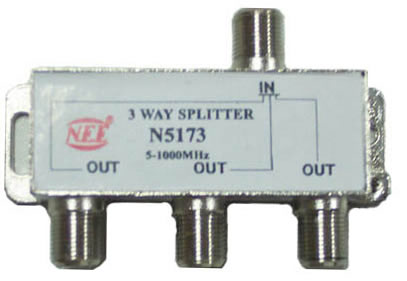

N5173 Three Way Splitter |

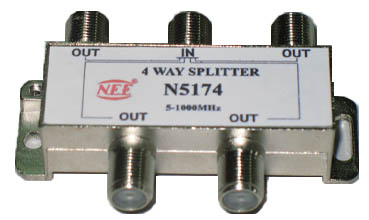

N5174 Four Way Splitter |
 |
 |
|

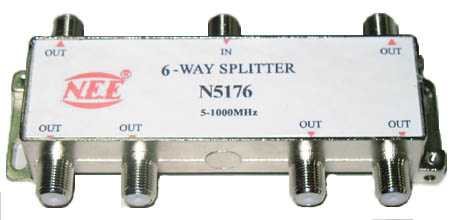

| N5176 Six Way Splitter |
N5178 Eight Way Splitte |
FEATURES AND SPECIFICATION
- Zinc die cast housing, nickel-plated
- Screening factor: 30-300MHz ¡Ý85dB;300-470MHz ¡Ý80dB; 470-1000MHz ¡Ý75dB
- Bandwidth: 5-1000MHz
- Low insertion loss, high return loss and isolation
- FR4 PCB for consistency of specifications in all bandwidth
- High quality ferrites, SMD resistors and capacitors
- Each unit is individually packed in PE bag
- Grounding terminal provided
- All ports DC block; Connector: F female, 75ohm
- Return loss all porst: 5-750MHz,18dB min; 750-1000MHz, 16dB min.
MODEL |
Insertion Loss (dB, max) |
Out to Out Isolation (dB, min) |
||||||
5-65MHz |
65-550MHz |
550-750MHz |
750-1000MHz |
5-65MHz |
65-550MHz |
550-750MHz |
750-1000MHz |
|
Two Way Splitter |
||||||||
N5172 |
3.2 |
3.5 |
3.8 |
4.2 |
35 |
32 |
30 |
30 |
Three Way Splitter |
||||||||
N5173 |
4.9 |
5.2 |
5.7 |
6.0 |
30 |
30 |
30 |
28 |
Four Way Splitter |
||||||||
N5174 |
6.6 |
7.0 |
7.6 |
7.7 |
32 |
32 |
30 |
28 |
Six Way Splitter |
||||||||
N5176 |
8.2 |
9.0 |
9.8 |
10.4 |
29 |
27 |
26 |
26 |
Eight Way Splitter |
||||||||
N5178 |
10.1 |
10.6 |
11.4 |
12.5 |
27 |
35 |
31 |
26 |
